Adjustable Doweling Jig

《Product Introduce 》：

Adjustable Doweling Jig

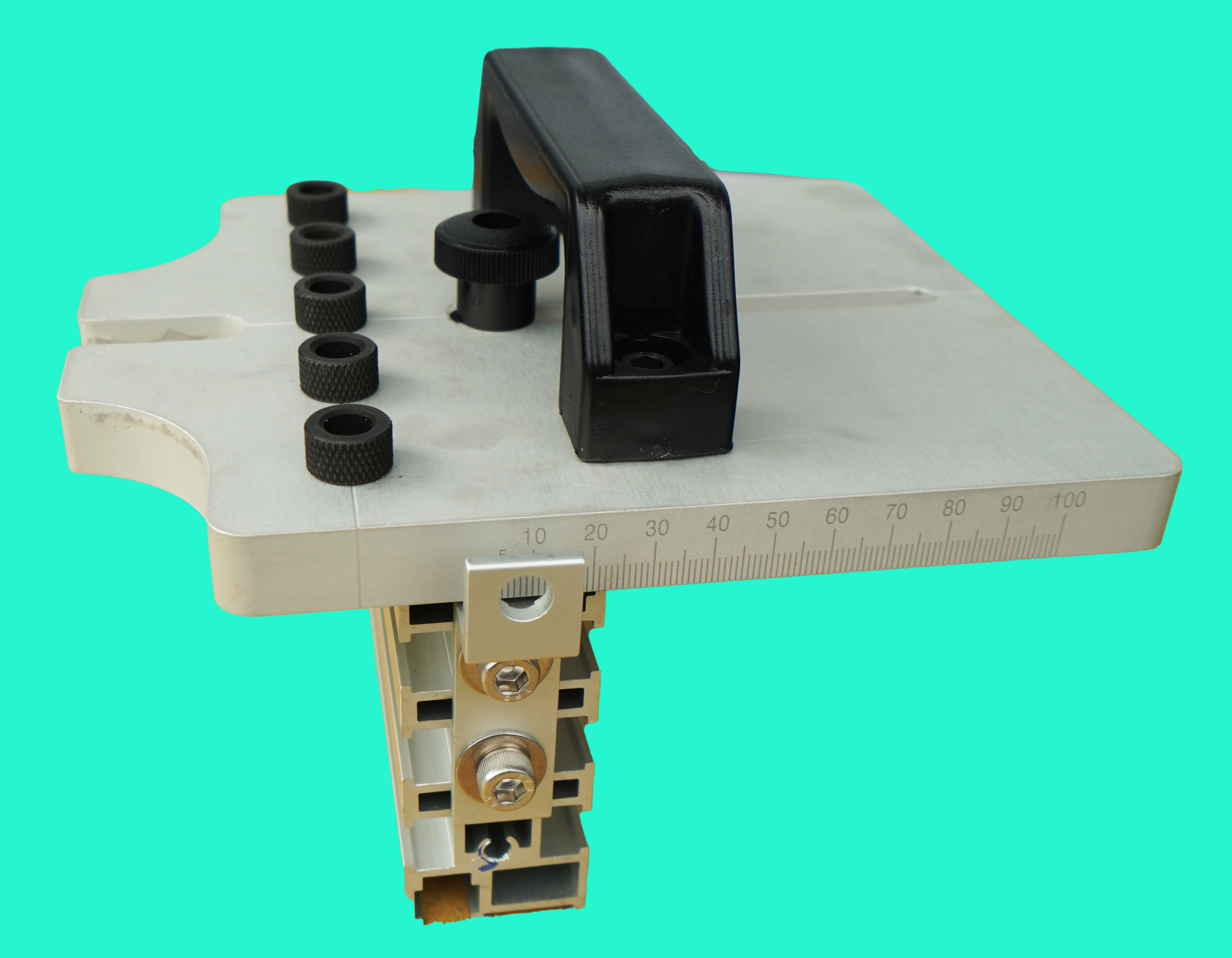

• This is an outstanding jig for dowel joinery. CNC-machined from aluminum and hard-anodized, the basic jig consists of an indexing plate, a fence and a detachable drilling block with five 3/8" hardened steel guide bushings.  Its versatility extends well beyond basic edge-to-edge connections into more complex work such as carcass corners, shelves and table or chair aprons.

• It is quick to position and straight forward to use, yielding accurate, repeatable results without an elaborate set-up.

• The jig simply uses the end or edge of the stock as a reference line, or uses a marked center line for positioning.

• Joint alignment is nearly foolproof because the same reference faces are used on both workpieces.

• An adjustable fence positions the drilling block relative to the face of the work, so you can easily join stock of different thicknesses, add a reveal, or drill a row of holes centered up to 3 1/2" from any face.

• The fence has a direct-reading scale with positive stops in 1 mm increments for accurate adjustment.

• In situations where you can't use the fence (e.g., a shelf joint) or when the dowels are widely spaced, the drilling block's central slot lets you register the jig on dowels inserted in one workpiece to position it for drilling the corresponding holes in its mate.

Item#BJ0110
