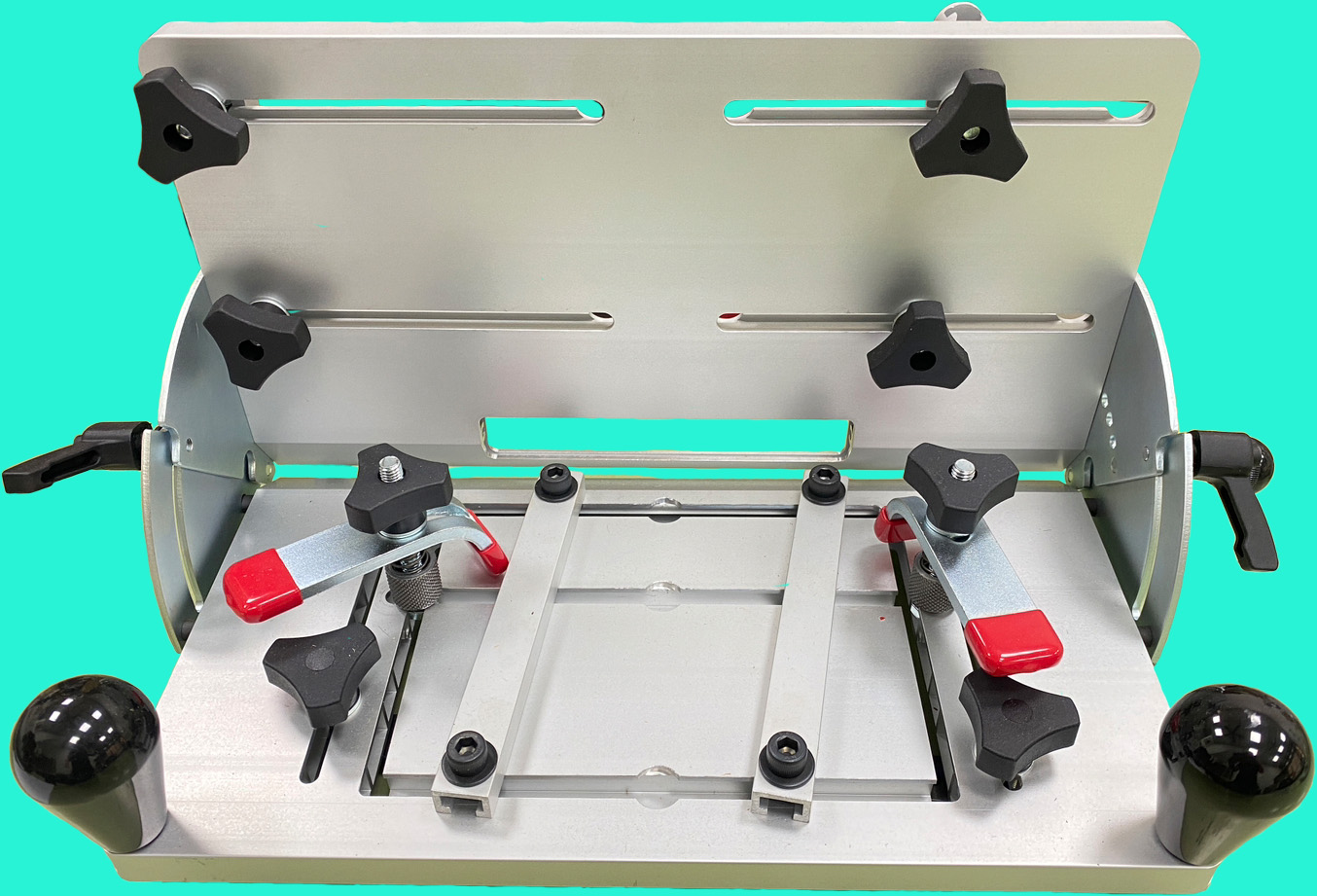

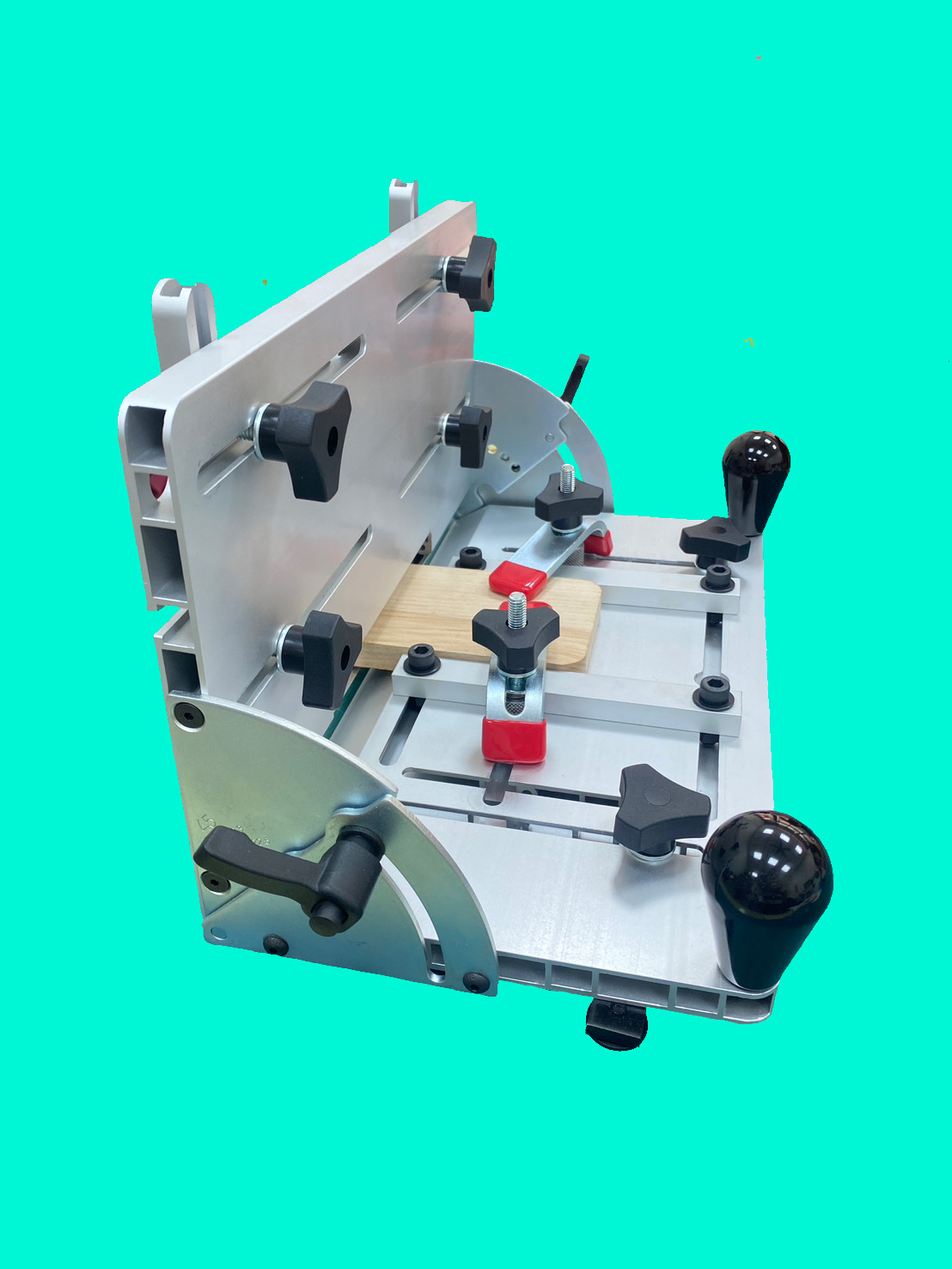

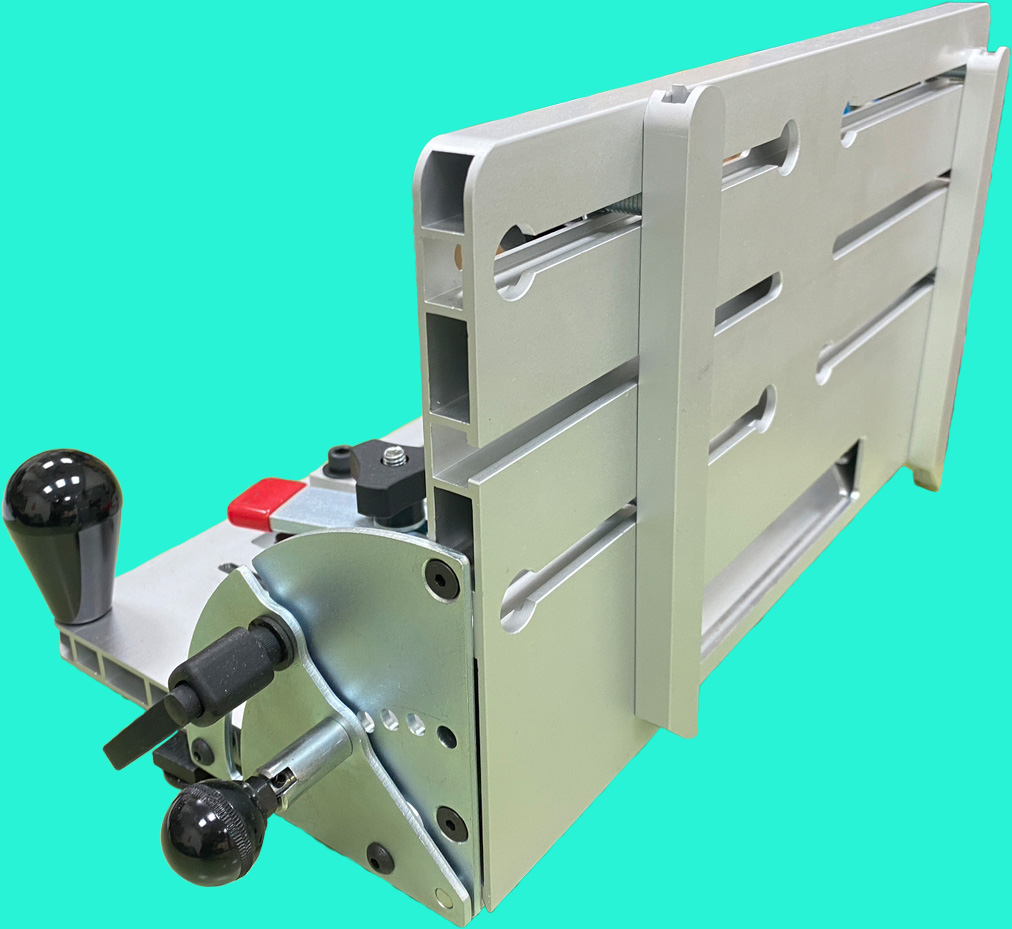

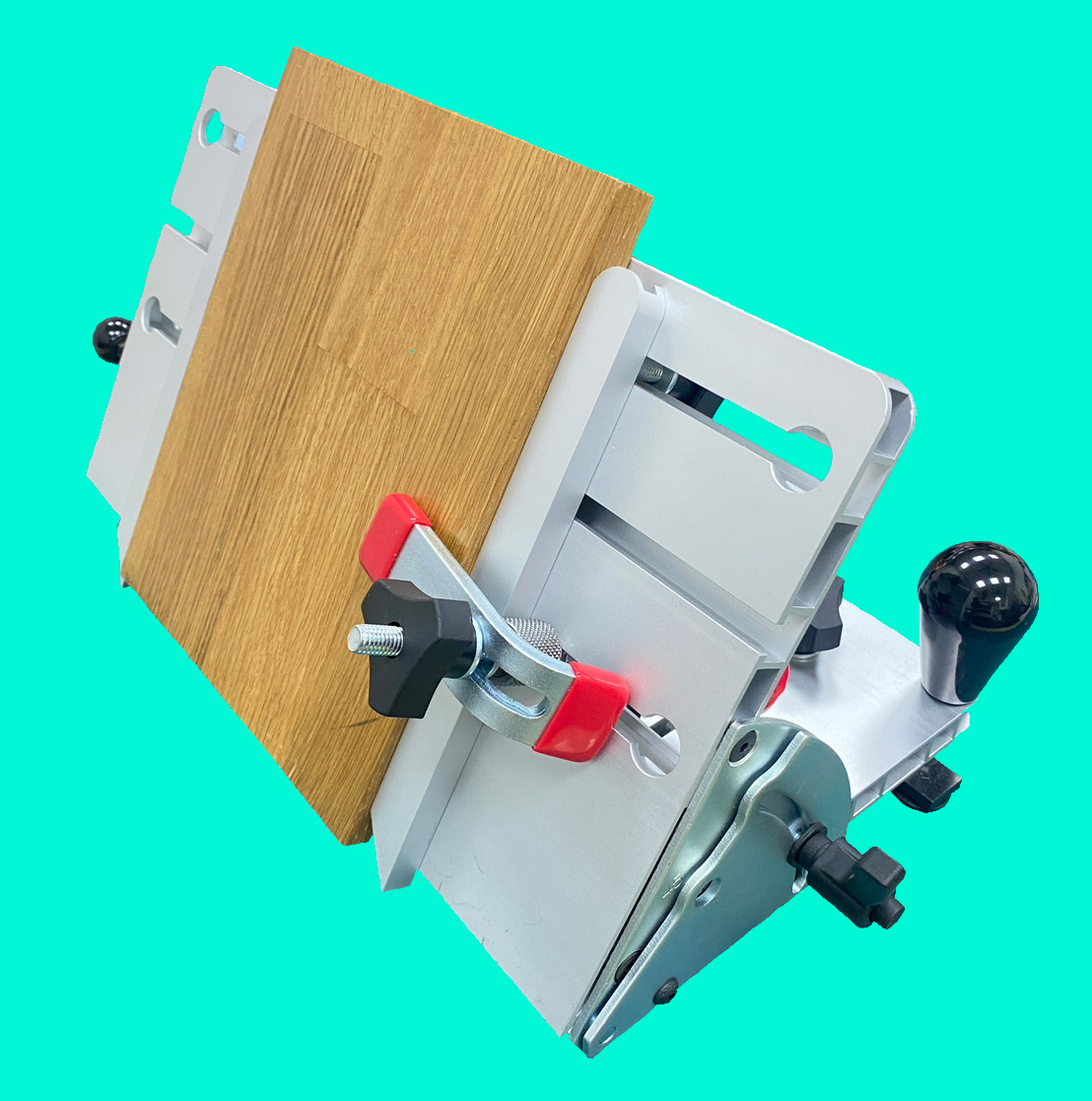

Vertical Router/ Saw Sled

《Product Introduce 》：

Vertical Router/ Saw Sled

• The milled aluminum base and tilting table scream quality as well as versatility.

• The sled is designed to hold workpieces at angles from 90° down to 45°.

• It has a spring-loaded pin on the front of the sled that registers the table at 5 different locations (90°, 45°, 33.3°, 22.5°, and 11.25°).

• The adjustable fences on the table slide in slots, it made easily change the angle of the fences to hold parts for compound cuts at the router table or table saw.

• The fences are pre-drilled for hold down clamps, and the kit includes two clamps.

• An included miter bar can be attached to the bottom of the sled.

• The ability to lock the sled to the table saw, easily cut extremely acute angles on the ends of parts, such as this angle on a triangular flag case.



Item#GD0100
